NAME:Fiberglass Chopped Strand Mat(CSM)-Emulsion Binder

Number:
  • Emulsion Strand Mats are unwoven fabrics consisting of randomly distributed chopped strands held together with an emulsion binder.
Features

Product Description

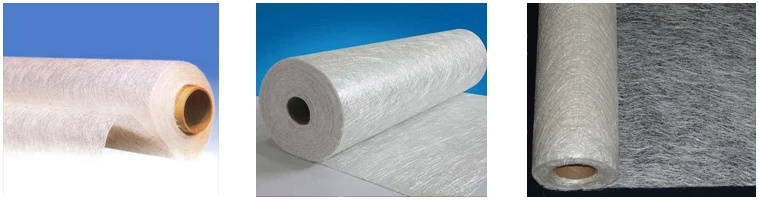

Fiberglass Chopped Strand Mat-Emulsion Binder

E-Glass Emulsion Chopped Strand Mat is made of randomly distributed chopped strands held tighter by a emulsion binder. It is compatible with UP, VE, EP resins. It is compatible with UP, VE, EP, PF resins. The roll width ranges from 50mm to 3300mm. Additional demands on wet-out and decomposition time may be available upon request. It is designed for use in hand lay-up, filament winding,  compression molding and continuous laminating processes.

Product Features:

     1)  Fast breakdown in styrene

     2)  High tensile strength, allowing for use in hand lay-up process to produce large-area parts

     3)  Good wet-through and fast wet-out in resins, rapid air lease

     4)  Superior acid corrosion resistance



Fiberglass Chopped Strand Mat have two kinds powder binder and emulsion binder.



Get Sample & Quotation



Emulsion binder






PRODUCT SPECIFICATIONS

Property Area Weight Moisture Content Size Content Breakage Strength Width
  (%) (%) (%) (N) (mm)
Property IS03374 ISO3344 ISO1887 ISO3342 50-3000
EMC80E ±7.5 ≤0.20 8-12 ≥40
EMC100E ≥40
EMC120E ≥50
EMC150E 4-8 ≥50
EMC180E ≥60
EMC200E ≥60
EMC225E ≥60
EMC300E 3-4 ≥90
EMC450E ≥120
EMC600E ≥150
EMC900E ≥200
  • Special specification can be produce according to customer requirements.





PRODUCT LINE

Shipping & Storage

Unless otherwise specified, Chopped Strand Mat should be stored in a dry, cool and rain-proof area. It is recommended that the room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65% respectively.

Packaging

Each Chopped Strand Mat is wound onto a paper tube which has an inside diameter of 76mm and the mat roll has a diameter of 275mm. The mat roll is wrapped up with plastic film,and then packed in a cardboard box or wrapped up with kraft paper. The rolls can be vertically or horizontally placed. For transportation, the rolls can be loaded into a cantainer directly or on pallets.

LOADING

Application

  Its end-use applications include boats, bath equipment, automotive parts,  chemical corrosion resistant pipes, tanks, cooling towers and  building components.

EB-Application

Our Services

Contact Us

Tel: +86 792 8322300/8322322/8322329
Cell: +86 13923881139
Fax: +86 792 8322312
website:  http://www.fiberglassfiber.com
website on alibaba.com:  http://chinabeihai.en.alibaba.com
Online contacts: Whatsapp & wechat: +86-13923881139

FAQ
1.Moq:1000kgs
2.Delivery time:15days after confirm order
3.Payment term:T/T 30%  deposit in advance,70% balance before shipment date.
