NAME:Assembled Roving for Chopping

Number:
  • Assembled Roving for Chopping is coated with special silane-based sizing, compatible with UP and VE, delivering relatively high resin absorbability and excellent choppability, while its final composite products deliver superior water resistance and excellent chemical corrosion resistance. It is typically used to manufacture FRP pipes.
Features




Product Description



Assembled Roving for Chopping is coated with special silane-based sizing, compatible with UP and VE, delivering relatively high resin absorbability and excellent choppability, while its final composite products deliver superior water resistance and excellent chemical corrosion resistance.

Product Features:

1) High resin absorbability

2) Excellent choppability

3) Superior water resistance and excellent chemical corrosion

    resistance of final products

       Roving-4
Product Information
Item Linear Density Resin Compatibility Features End Use
BHC-01A 2400,4800 UP,VE good dispersion, moderate wet
out in resin, good static control
FRP pipes
BHC-02A 2400,4800 UP,VE few fuzz, good choppability,
excellent chemical resistance
as chop roving
for pipe manufacture



Identification
Type of Glass E
Assembled Roving R
Filament Diameter, μm 13
Linear Density, tex 2400, 4800



Technical Parameters
Linear Density  (%) Moisture Content  (%) Size Content  (%) Stiffness (mm)
ISO1889 ISO3344 ISO1887 ISO3375
±6 ≤0.15 1.20±0.15 125±20



            6 Chopping-e




Shipping & Storage

Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. The room temperature and humidity should be always maintained at 15℃~35℃ and 35%~65%. It is best if the price is used within 12 months after production date. The fiberglass products should remain in their original packaging until just prior to user.

To ensure safety and avoid damage to the product, the pallets not be stacked more than three layers high. When the pallets are stacked in 2 or 3 layers, special care should be taken to correctly and smoothly move the top pallet.

Packaging

The product can be packed on pallet or in small cardboard boxes.

Package height mm (in) 260(10) 260(10)
Package inside diameter mm(in) 100(4) 100(4)
Package outside diameter mm(in) 270(10.6) 310(12.2)
Package Weight kg(lb) 17(37.4) 23(50.7)



Number of layers 3 4 3 4
Number of doffs per layer 16 12
Number of doffs per pallet 48 64 36 48
Net Weight per pallet kg(lb) 816(1797.3) 1088(2396.5) 828(1825.4) 1104(2433.9)



Pallet Length mm(in) 1120(44) 1270(50)
Pallet Width mm(in) 1120(44) 960(37.8)
Pallet height mm(in) 940(37) 1180(46.5) 940(37) 1180(46.5)

                               Assembled Roving-packing

LOADING

Application

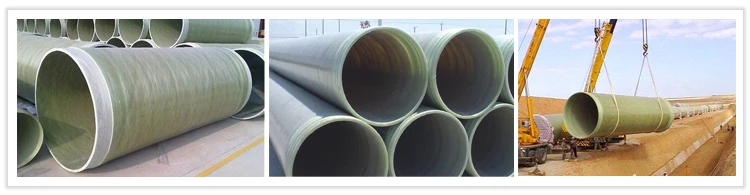

It is typically used to manufacture FRP pipes.
